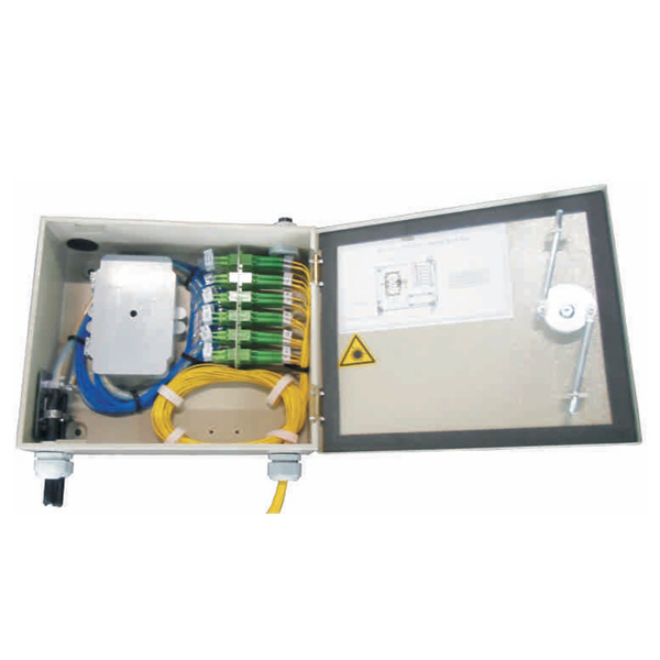

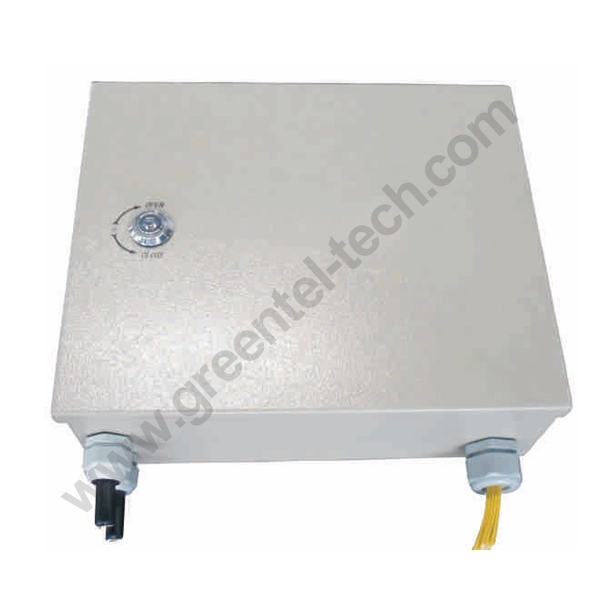

Fiber Distribution Hub H2 Series

FDH Fiber Distribution Hub are designed to provide a high density wall-mountable solution for next generation fiber networks, it is used as terminal equipemnt of fiber optical cable for fiber patching,fixation,splicing,splitting and management. Green Telecom FDH offers superior optical performance, high stability and high reliability, meet various application requirements in FTTh construction, ODN construction, LAN, Metro network and CATV.
Contact Us
  • Product Information
  • Feedback

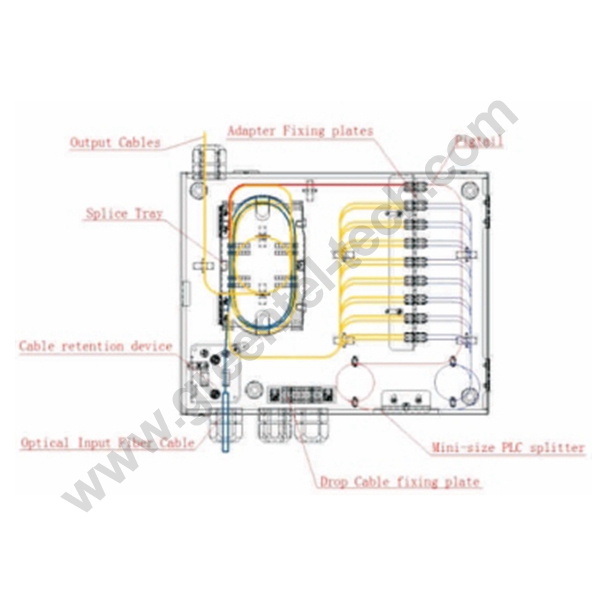

Among those famous fiber distribution hub h2 series manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized fiber distribution hub h2 series made in China. Our factory is waiting for your contact.   Description FDH Fiber Distribution Hub are designed to provide a high density wall-mountable solution for next generation fiber networks, it is used as terminal equipemnt of fiber optical cable for fiber patching,fixation,splicing,splitting and management. Green Telecom FDH offers superior optical performance, high stability and high reliability, meet various application requirements in FTTh construction, ODN construction, LAN, Metro network and CATV. Features ● Wall-mountable installation design ● Integrated with splice cassette and cable management elements ● Manages large quantities of fiber with high density design ● Easy to maintain and extend fibers in the future ● Fiber bend radius control more than 40mm ● PG13.5,PG19,PG21 cable glands suitable for all types of cables ● Maximum capacity up to 72 ports ● Efficient space for cable management and storage ● Dust and splash-proof level reaches IP54 Specification

Fiber Distribution Hub H2 Parameter

Adaptor Type

SC,FC,ST,Duplex SC,Duplex LC

Capacity

12,24,36,48,72 fibers

Body Material

Cold rolled steel or stainless steel

Surface Treatment

Powder coating white or grey color

Installation Method

Wall mounted(pole mounted optional)

Size Dimension(mm)

460(W) x350(H)x140(D) for 12,24,36F

570(W) x460(H)x130(D) for 48,72F

Strengthen Member Fixation

Yes

Bending Radius(mm)

>40

Working Temperature

-20 (℃) to +60(℃)

Storage Temperature

-25 (℃) to +70(℃)

Relative Humidity

<90%RH

Customization Event ① Body Material ② Body Color ③ Fiber Capacity ④ Pigtail Type ⑤ Adaptor Type ⑥ Branding Logo Print Ordering Information FDH-H2-XX -XX- XX-- XX- XX-- XX 1 -   2 -   3 -   4 -   5 -   6

1 Body Material

2 3 Adaptor

4 Capacity

5 Pigtail

6 Body Color

01:Cold Rolled Steel

Nil:No Adaptor

12:12F

09S:0.9mm Single

WT:White

02:Stainless Steel

SU:SU/UPC

24:24F

20S:2.0mm Single

GY:Grey

SA:SA/UPC

36:36F

30S:3.0mm Single

FU:FC/UPC

48:48F

FA:FC/APC

72:72F

LU:LC/UPC

LA:LC/APC
