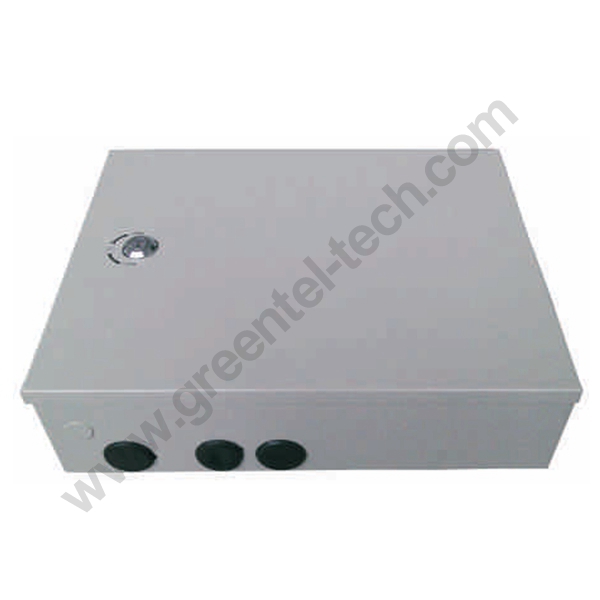

Fiber Distribution Hub H1 Series

FDH Fiber Distribution Hub are designed to provide a high density wall-mountable solution for next generation fiber networks, it is used as terminal equipemnt of fiber optical cable for fiber patching,fixation,splicing,splitting and management. Green Telecom FDH offers superior optical performance, high stability and high reliability, meet various application requirements in FTTh construction, ODN construction, LAN, Metro network and CATV.

PREV:Fiber Distribution Hub H2 Series
NEXT:No next article

Product Information
Feedback

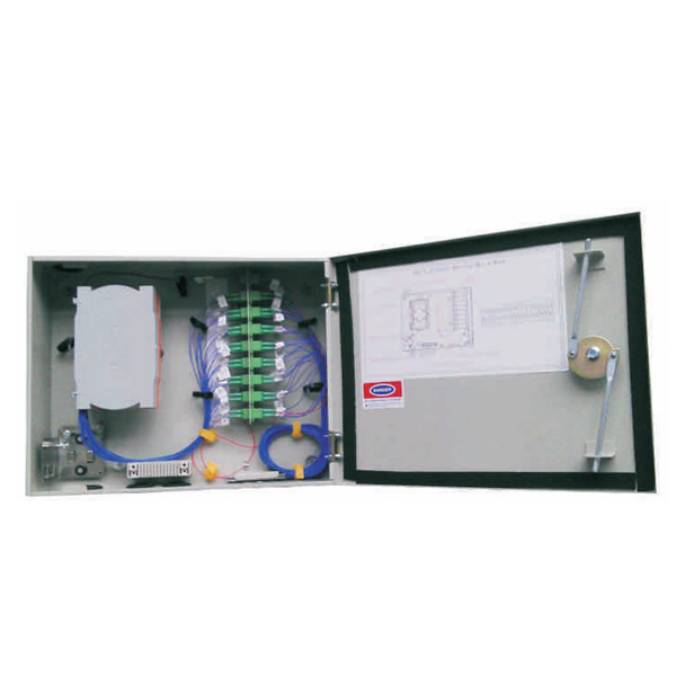

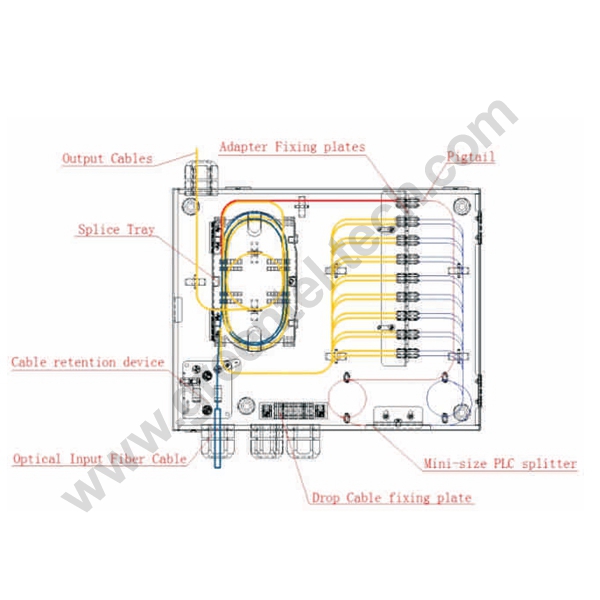

Among those famous fiber distribution hub h1 series manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized fiber distribution hub h1 series made in China. Our factory is waiting for your contact. Description FDH Fiber Distribution Hub are designed to provide a high density wall-mountable solution for next generation fiber networks, it is used as terminal equipemnt of fiber optical cable for fiber patching,fixation,splicing,splitting and management. Green Telecom FDH offers superior optical performance, high stability and high reliability, meet various application requirements in FTTh construction, ODN construction, LAN, Metro network and CATV. Features ● Wall-mountable installation design ● Integrated with splice cassette and cable management elements ● Manages large quantities of fiber with high density design ● Easy to maintain and extend fibers in the future ● Fiber bend radius control more than 40mm ● PG13.5,PG19,PG21 cable glands suitable for all types of cables ● Maximum capacity up to 32 ports ● Efficient space for cable management and storage ● Dust and splash-proof level reaches IP54 ● Steel tube type PLC Splitter can be placed for distribution Specification

Fiber Distribution Hub H1 Parameter
Adaptor Type	SC,FC,ST,Duplex SC,Duplex LC
Capacity	8,16,32 fibers
Body Material	Cold rolled steel or stainless steel
Surface Treatment	Powder coating black or white color
Installation Method	Wall mounted(pole mounted optional)
Size Dimension(mm)	460(W) x350(H)x140(D)
Strengthen Member Fixation	Yes
Bending Radius(mm)	>40
PLC Splitter Type	Steel Tube 1x8,1x16,1x32
Working Temperature	-20 (℃) to +60(℃)
Storage Temperature	-25 (℃) to +70(℃)
Relative Humidity	<90%RH

Customization Event ①Body Material ②Body Color ③Fiber Capacity ④Pigtail Type ⑤Adaptor Type ⑥Branding Logo Print Ordering Information FDH-H1-XX -XX- XX-- XX- XX-- XX 1 - 2 - 3 - 4 - 5 - 6

1 Body Material	2 3 Adaptor	4 Capacity	5 Pigtail	6 Body Color
01:Cold Rolled Steel	Nil:No Adaptor	08:8F	09S:0.9mm Single	WT:White
02:Stainless Steel	SU:SU/UPC	16:16F	20S:2.0mm Single	GY:Grey
	SA:SA/UPC	32:32F	30S:3.0mm Single
	FU:FC/UPC
	FA:FC/APC
	LU:LC/UPC
	LA:LC/APC
