Fiber Distribution Hub H3 Series

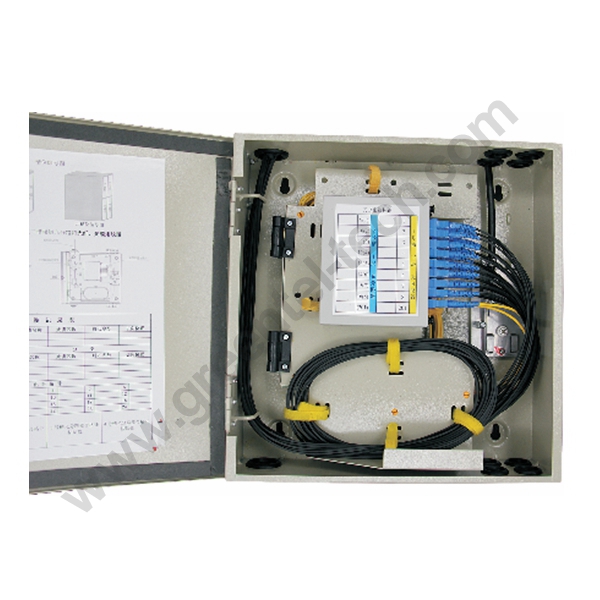

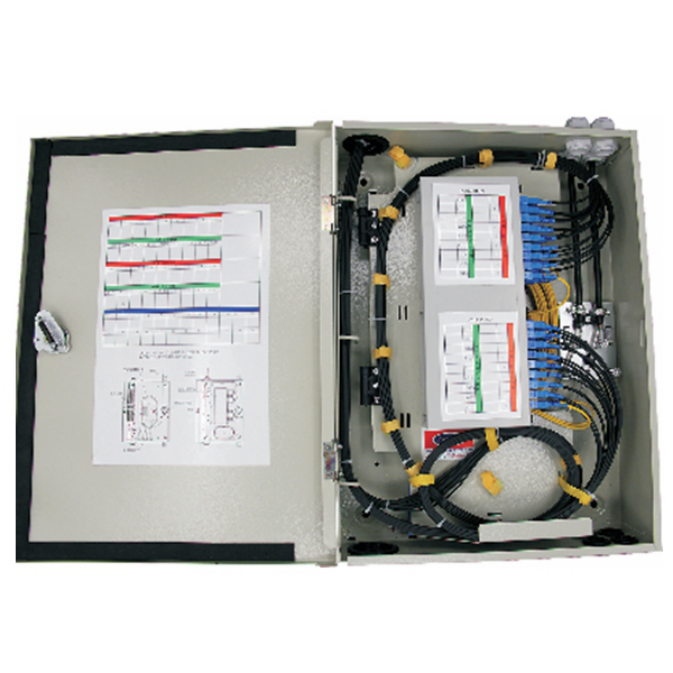

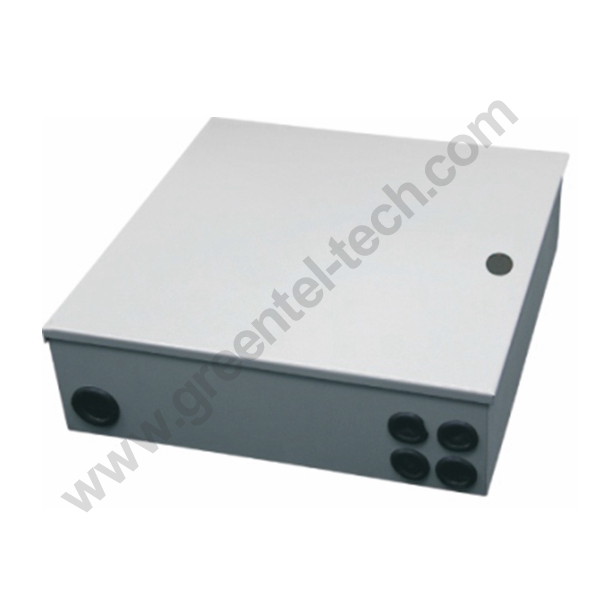

FDH Fiber Distribution Hub are designed to provide a high density wall-mountable solution for next generation fiber networks, it is used as terminal equipemnt of fiber optical cable for fiber patching,fixation,splicing,splitting and management Green Telecom FDH offers superior optical performance, high stability and high reliability, meet various application requirements in FTTh construction, ODN construction, LAN, Metro network and CATV.
Contact Us
  • Product Information
  • Feedback
Among those famous fiber distribution hub h3 series manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized fiber distribution hub h3 series made in China. Our factory is waiting for your contact.   Description FDH Fiber Distribution Hub are designed to provide a high density wall-mountable solution for next generation fiber networks, it is used as terminal equipemnt of fiber optical cable for fiber patching,fixation,splicing,splitting and management Green Telecom FDH offers superior optical performance, high stability and high reliability, meet various application requirements in FTTh construction, ODN construction, LAN, Metro network and CATV. Features ● Wall-mountable installation design ● Integrated with splice cassette and cable management elements ● Manages large quantities of fiber with high density design ● Easy to maintain and extend fibers in the future ● Fiber bend radius control more than 40mm ● PG13.5,PG19,PG21 cable glands suitable for all types of cables ● Maximum capacity up to 32 ports ● Efficient space for cable management and storage ● Dust and splash-proof level reaches IP54 ● Insertion modular type PLC Splitter can be placed for distribution Specification

Fiber Distribution Hub H3 Parameter

Adaptor Type

SC,FC,ST,Duplex SC,Duplex LC

Capacity

16,32 fibers

Body Material

Cold rolled steel or stainless steel

Surface Treatment

Powder coating black or white color

Installation Method

Wall mounted(pole mounted optional)

Size Dimension(mm)

460(W) x350(H)x140(D) for 16F

570(W) x460(H)x130(D) for 32F

Strengthen Member Fixation

Yes

Bending Radius(mm)

>40

PLC Splitter Type

Insertion Modular 1x16,2x16

Working Temperature

-20 (℃) to +60(℃)

Storage Temperature

-25 (℃) to +70(℃)

Relative Humidity

<90%RH

Customization Event ①Body Material ②Body Color ③Fiber Capacity ④Pigtail Type ⑤Adaptor Type ⑥Branding Logo Print Ordering Information FDH-H3-XX -XX- XX-- XX- XX-- XX 1 -   2 -   3 -   4 -   5 -   6

1 Body Material

2 3 Adaptor

4 Capacity

5 Pigtail

6 Body Color

01:Cold Rolled Steel

Nil:No Adaptor

16:16F

09S:0.9mm Single

WT:White

02:Stainless Steel

SU:SU/UPC

32:32F

20S:2.0mm Single

GY:Grey

SA:SA/UPC

30S:3.0mm Single

FU:FC/UPC

FA:FC/APC

LU:LC/UPC

LA:LC/APC
