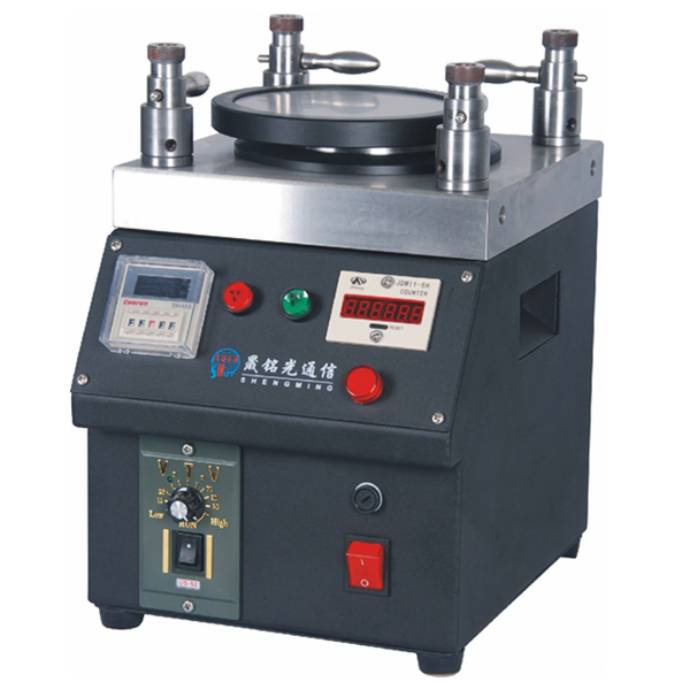

Fiber Polish Machine SM-02B
  • Fiber Polish Machine SM-02B

Fiber Polish Machine SM-02B

The fiber polishing machine can process each kind of standard fiber optic connector: FC, SC, LC, ST, MTRJ, MPO, MTP, E2000 and so on. This fiber polishing machine can polishing 18~40 connectors one time, the fiber polishing machine is suitable extremely for the volume production, this fiber polishing machine is square pressurized by the spring, the operation is simple, the fiber polishing machine processing precision high and the uniformity is extremely good. And this type fiber polishing
Contact Us
  • Product Information
  • Feedback

Among those famous fiber polish machine sm-02b manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized fiber polish machine sm-02b made in China. Our factory is waiting for your contact.

Description
The fiber polishing machine can process each kind of standard fiber optic connector: FC, SC, LC, ST, MTRJ, MPO, MTP, E2000 and so on.
This fiber polishing machine can polishing 18~40 connectors one time, the fiber polishing machine is suitable extremely for the volume production, this fiber polishing machine is square pressurized by the spring, the operation is simple, the fiber polishing machine processing precision high and the uniformity is extremely good. And this type fiber polishing machine is fast processes each kind of connectors with high effect.
The fiber polishing machine's industrial production qualified rate to be higher, and regardless of grinding 1 or 24, 40connectors, the polishing effect is same, the operation flexibility is high.

Configuration:
The fiber polishing machine using Japanese electrical machinery (ensuring the movement stable under ultra long time)
This fiber polishing machine be used the Japanese NSK bearing ( ensuring the internal structure to be stable in the high-speed operation, extending the working life)
The electron primary device is imported from OMRON (ensuring the electrical specification stable)
Our this fiber polishing machine's main components are used the material imported from Germany (ensuring the processing precision and the durability)

Features
● Stepless speed regulating
● Buttons speed adjustment, speed range: 0n/m~170rpm, Each time you press the speed control key speed.
● Automatic fixed time
● Timing function with the countdown display. Timer time to the machine, time up automatic stop working.
● Automatic count
● Each time you press the button, the counter automatically increase 1 times, used to grind paper used times of memory.
● Grinding speed can be adjusted from 0 to 170rpm.

Specification

Fiber Optical Polish Machine - SM-02B Parameter

Model

SM-02B

Pressure Method

4 Coil Pressuring

Polish Disc Rotary Speed

30~160rpm(adjustable)

Material

S136 Molding Steel

Voltage

AC 220V

Power

50Hz 40W

Working Temperature

-10 ℃ to +50 ℃

Timer

One Timer

Weight

29kg

Dimension

310mmx220mmx330mm
