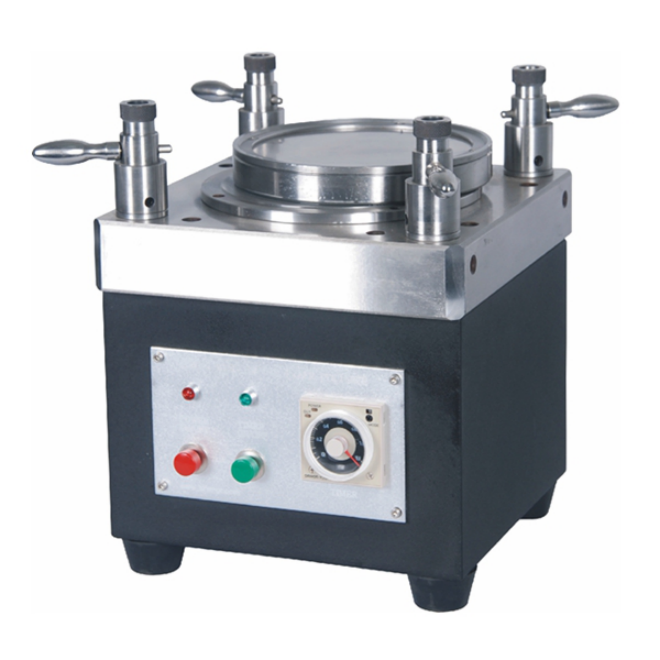

Fiber Polish Machine SM-02A
  • Fiber Polish Machine SM-02A

Fiber Polish Machine SM-02A

1.Fiber polishing machine can FC, SC, ST, LC, MU, D4, E2000, MTP, MT-RJ etc, this fiber polishing machine is very applicable to mass production with high production efficiency. Can Polish 18, 20, 24, 32, 40 etc conenctors. This fiber polishing machine usually a production line could be equipped with 3 center polishing machine, each finish 9um, 3um, 1um polishing progress. Wirenet provide polishing machine with compact design and long durability. 2.The fiber polishing machine can
Contact Us
  • Product Information
  • Feedback

Among those famous fiber polish machine sm-02a manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized fiber polish machine sm-02a made in China. Our factory is waiting for your contact.

Description
1.Fiber polishing machine can FC, SC, ST, LC, MU, D4, E2000, MTP, MT-RJ etc, this fiber polishing machine is very applicable to mass production with high production efficiency. Can Polish 18, 20, 24, 32, 40 etc conenctors. This fiber polishing machine usually a production line could be equipped with 3 center polishing machine, each finish 9um, 3um, 1um polishing progress. Wirenet provide polishing machine with compact design and long durability.
2.The fiber polishing machine can display polishing speed and polishing times, making the process easier to control quality.
3.The fiber polishing machine comply with IEC standards can produce geometric face.
4.The fiber polishing machine adopt planetary orbit by way of Research Mo.
5.IPC using the new fixture(each mortise, Independent compression) technology allows higher passing rate of industrial production, and is willing to either one or 24, 32, 40 ground connector, ground effects the same operation and high flexibility.
6.Treatment with high-quality stainless steel had to make the machine to maintain a very high accuracy and the Availability.

Features
● Stepless speed regulating
● Buttons speed adjustment, speed range: 0n/m~170rpm, Each time you press the speed control key speed.
● Automatic fixed time
● Timing function with the countdown display. Timer time to the machine, time up automatic stop working.
● Automatic count
● Each time you press the button, the counter automatically increase 1 times, used to grind paper used times of memory.
● Grinding speed can be adjusted from 0 to 170rpm.

Specification

Fiber Optical Polish Machine - SM-02A Parameter

Model

SM-02A

Pressure Method

4 Coil Pressuring

Polish Disc Rotary Speed

70rpm for rotation, 1rpm for revolution

Material

S136 Molding Steel

Voltage

AC 220V

Power

50Hz 80W

Working Temperature

-10 ℃ to +50 ℃

Timer

One Timer

Weight

29kg

Dimension

270mmx220mmx280mm
