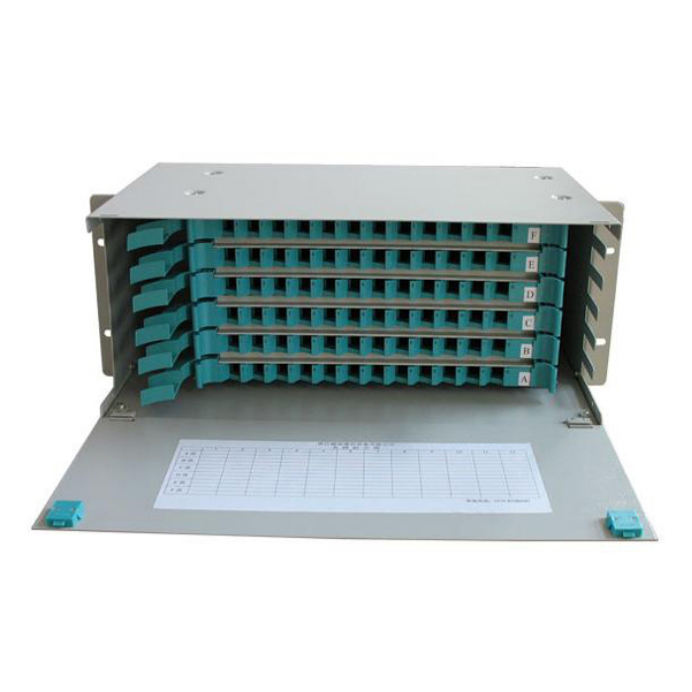

ODF Patch Panel P4 Series

ODF patch panels are designed to provide a high density 19" rack-mountable solution for next generation fiber networks, it is used as terminal equipemnt of fiber optical cable for fiber patching,fixation,splicing and management. Green Telecom ODF patch panel offers superior optical performance, high stability and high reliability, meet various application requirements in FTTH construction , ODN construction, LAN, Metro network and CATV.
Contact Us
  • Product Information
  • Feedback
Among those famous odf patch panel p4 series manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized odf patch panel p4 series made in China. Our factory is waiting for your contact.   Description ODF patch panels are designed to provide a high density 19" rack-mountable solution for next generation fiber networks, it is used as terminal equipemnt of fiber optical cable for fiber patching,fixation,splicing and management. Green Telecom ODF patch panel offers superior optical performance, high stability and high reliability, meet various application requirements in FTTH Box construction , ODN construction, LAN, Metro network and CATV. Features ● Rack-mounted 19" with sliding drawer and front flip panel design ● Integrated with splice cassette and cable management elements ● Manages large quantities of fiber with high density design ● Easy to maintain and extend fibers in the future ● Fiber bend radius control more than 40mm ● Suitable for the splice of ribbon and bunchy cables ● Maximum capacity up to 720 ports ● Efficient space for cable management ● Cable led out from left or right side of patch panel rear part ● Fully comply with Telcordia GR1209/1221 qualifications Specification

ODF Patch Panel P4 Parameter

Adaptor Type

SC,FC,ST,Duplex SC,Duplex LC

Capacity

12,24,48,72,96,648,720 fibers

Body Material

Cold rolled steel or stainless steel

Surface Treatment

Powder coating computer grey color

Installation Method

Standard 19 inch rack mount

Size Dimension(mm)

486(W) x275(D)x44(H) for 12F

486(W) x275(D)x74(H) for 24F

486(W) x275(D)x128(H) for 48F

486(W) x275(D)x182(H) for 72F

486(W) x275(D)x238(H) for 96F

Rack Dimension(mm)

860(W) x365(D)x2000(H) Rack for 648F

860(W) x365(D)x2200(H) Rack for 720F

Strengthen Member Fixation

Yes

Bending Radius(mm)

> 40

Customization Event ①Body Material ②Body Color ③Fiber Capacity ④Pigtail Type ⑤Adaptor Type ⑥Branding Logo Print Ordering Information ODF-P4-XX -XX- XX-- XX- XX-- XX 1 -   2 -   3 -   4 -   5 -   6

1 Body Material

2 3 Adaptor

4 Capacity

5 Pigtail

6 Body Color

01:Cold Rolled Steel

Nil:No Adaptor

12:12F

09B:0.9mm Bunchy

WT:White

02:Stainless Steel

SU:SU/UPC

24:24F

09S:0.9mm Single

GY:Grey

SA:SA/UPC

48:48F

09R:0.9mm Ribbon

FU:FC/UPC

72:72F

20S:2.0mm Single

FA:FC/APC

30S:3.0mm Single

LU:LC/UPC

LA:LC/APC
