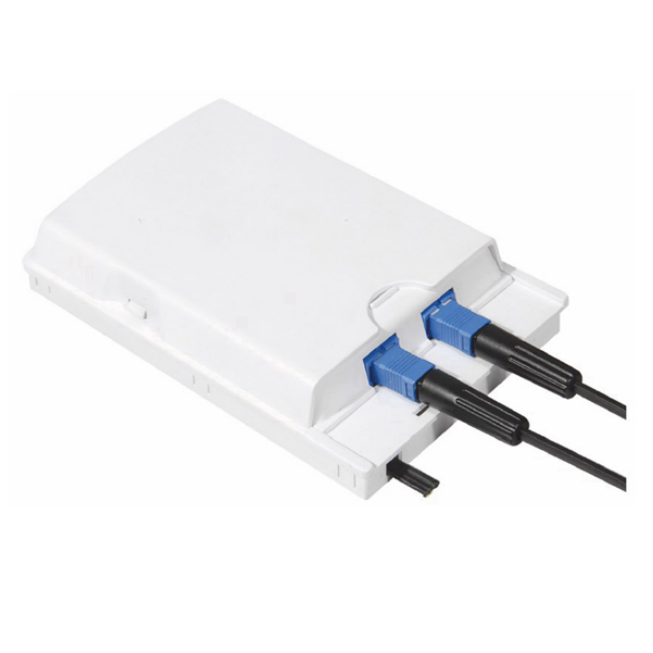

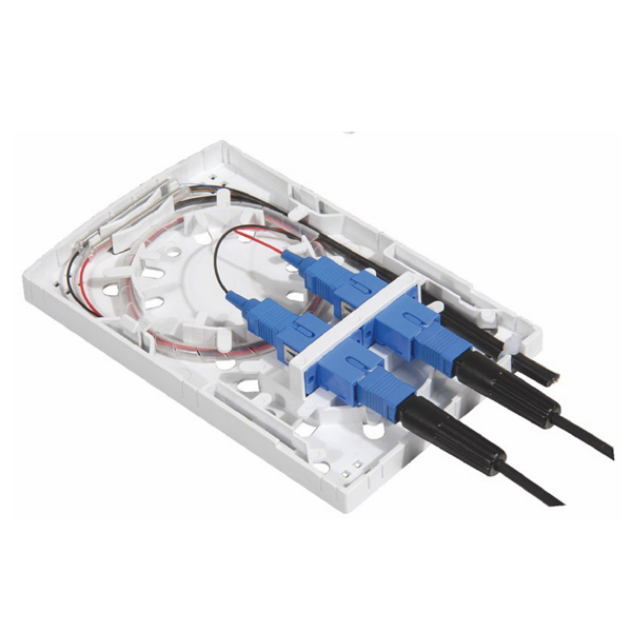

Optical rosettes Fiber Rosette FRB-2A
  • Optical rosettes Fiber Rosette FRB-2A
  • Optical rosettes Fiber Rosette FRB-2A
  • Optical rosettes Fiber Rosette FRB-2A

Optical rosettes Fiber Rosette FRB-2A

FRB-2A fiber rosette box is able to hold up to 2 subscribers. It is used as a termination point for the drop cable to connect with patch cable in FTTH indoor application. It integrates fiber termination, storage and cable connection in one solid protection box.
Contact Us
  • Product Information
  • Feedback
Among those famous fiber rosette frb-2a manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized fiber rosette frb-2a made in China. Our factory is waiting for your contact.

Description
FRB-2A fiber rosette box is able to hold up to 2 subscribers. It is used as a termination point for the drop cable to connect with patch cable in FTTH indoor application. It integrates fiber termination, storage and cable connection in one solid protection box.
Features
● Dust-proof design with IP-45 Protection level.
● Integrated with cable termination and management rods.
● Manage fibers in a reasonable fiber radius condition.
● Easy to maintain and extend the capacity.
● Suitable for the wall mounted installation.
● Embedded type surface, easy for installation and removal.
● 2 port cable entrance for drop cable or patch cable.
Specification
Application
3.0x2.0mm Drop Cable or Indoor Cable
Fiber Cladding Diameter
125um(G652D&G657A)
Fiber Diameter
250um&900um
Fiber Type
Single Mode(SM) & Multi Mode(MM)
Tensile Strength
>50N
Connecting Adaptor
SC & LC
Insertion Loss
<0.2dB
Return Loss
>50dB(UPC), >60dB(APC)
Bending Radius(mm)
> 15
Operation Temperature
-40~60(°C)
Storage Temperature
-40~85(°C)
Configuration
Rosetas ópticas / Fiber Rosette FRB-2A Parameter
Material
Size
Max Capacity
Mounting Method
Weight
Color
PC+ABS
AxBxC(mm)
SC
LC
Wall Mounting
0.3kg
White
130x84x24
2 Ports
4 Ports
Standard Accessories
Installation nuts and bolts,protection sleeves.
