DCB Series Demarcation Cable Box
  • DCB Series Demarcation Cable Box
  • DCB Series Demarcation Cable Box

DCB Series Demarcation Cable Box

DCB series demarcation cable box is able to hold up to 1 or 2 subscribers drop cable. It is used as the point of demarcation between the indoor and outdoor cable segment of customer environment before access to ONT in FTTH application. It integrates fiber termination, storage and cable connection in one solid protection box.
Contact Us
  • Product Information
  • Feedback
Among those famous FTTH demarcation cable box manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized FTTH demarcation cable box made in China. Our factory is waiting for your contact.


Description

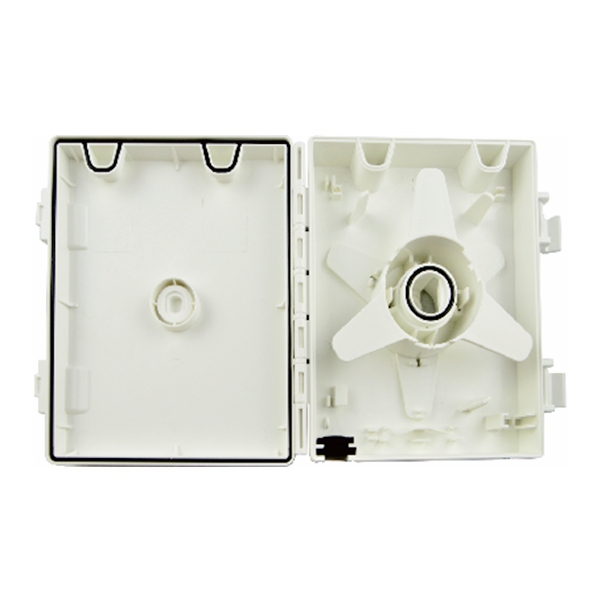

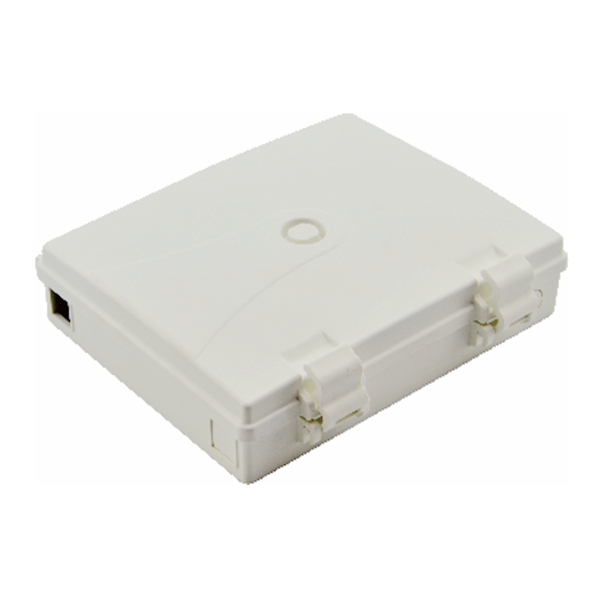

DCB series demarcation cable box is able to hold up to 1 or 2 subscribers drop cable. It is used as the point of demarcation between the indoor and outdoor cable segment of customer environment before access to ONT in FTTH application. It integrates fiber termination, storage and cable connection in one solid protection box.

Features

● Water-proof design with IP-65 Protection level. ● Integrated with cable termination and management rods. ● Manage fibers in a reasonable fiber radius condition. ● Easy to maintain and extend the capacity. ● Space for 2 x fiber protection sleeve and 1 adapter. ● Embedded type surface, easy for installation and removal. ● 1 port cable entrance for drop cable or patch cable.
Specification
Application
3.0x2.0mm Drop Cable or Indoor Cable
Fiber Cladding Diameter
125um(G652D&G657A)
Fiber Diameter
250um&900um
Fiber Type
Single Mode(SM) & Multi Mode(MM)
Tensile Strength
>50N
Connecting Adaptor
 SC & LC
Insertion Loss
<0.2dB
Return Loss
>50dB(UPC), >60dB(APC)
Bending Radius(mm)
> 15
Operation Temperature
-40~60 (°C)
Storage Temperature
-40~85 (°C)
Configuration

FTTH Demarcation Cable Box DCB Series Parameter

Material

Size Max Capacity Mounting Method Weight Color

PC+ABS

AxBxC(mm)

Model Length Wall Mounting 40g Light Grey


172x136x42

DCB-1A

30m



PC+ABS

AxBxC(mm) Model Length Wall Mounting 30g

White

  150x120x37

DCB-1B

15m


Standard Accessories
Installation nuts and bolts.
