Fiber MPO Cable

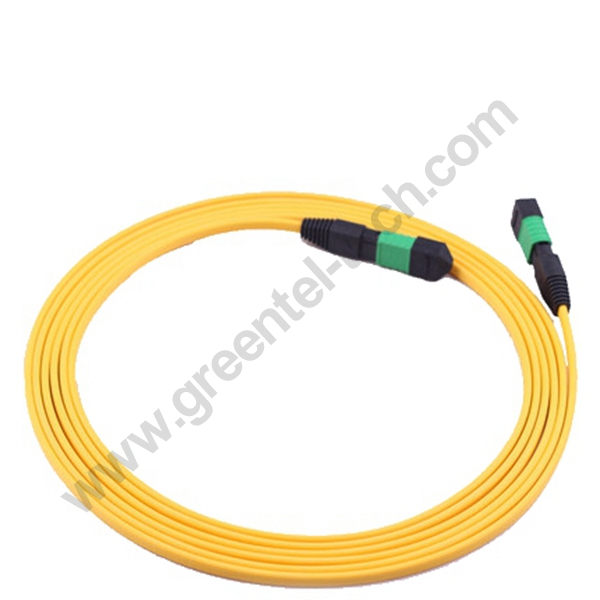

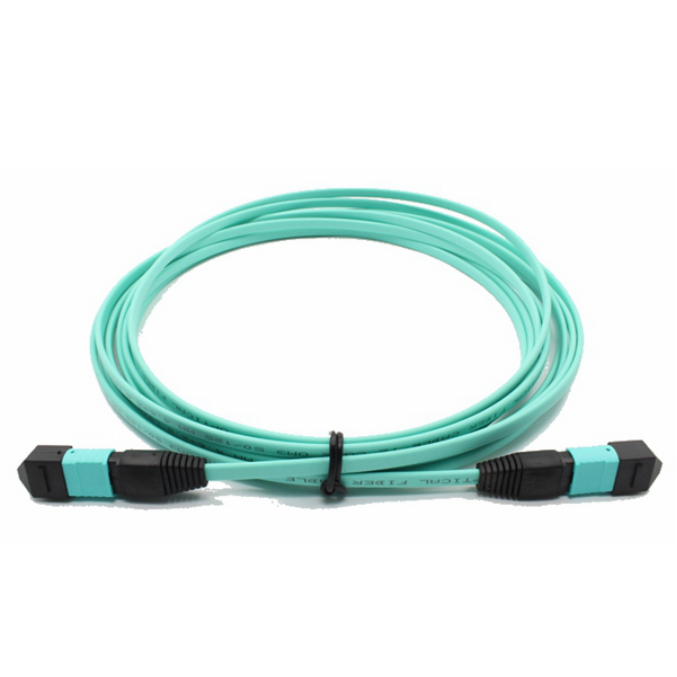

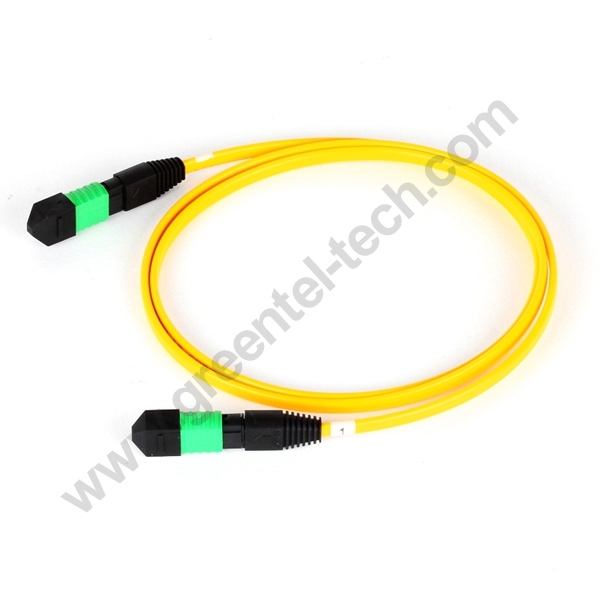

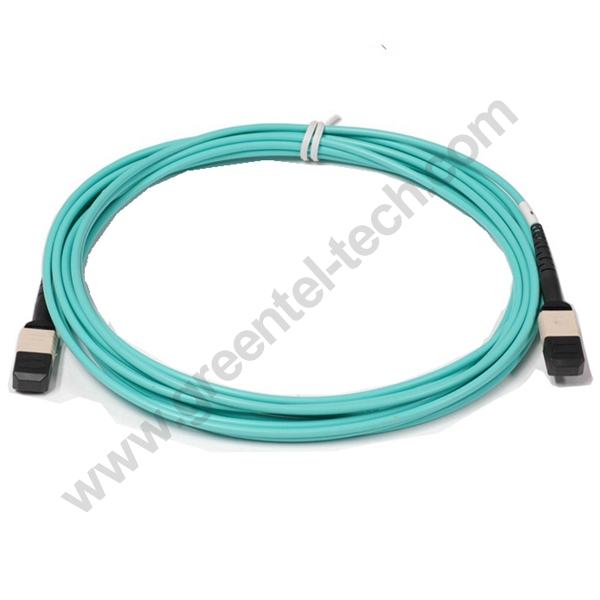

MPO patchcord is the world leading technology high density solution for telecom central office and data center. Varies connectors such as female UPC, female APC, male UPC, male APC are available. Strict manufacturing process ensure reliable quality of the pre-connectorized optical cable. All connectors are with good environmental and mechanical performance. Green Telecom MPO patchcord offers superior optical performance, high stability and high reliability, meet various

PREV:No previous article
NEXT:Fiber Drop Cable

Product Information
Feedback

Among those famous fiber mpo cable manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized fiber mpo patchcord, optical mpo patchcord made in China. Our factory is waiting for your contact.

Description
MPO patchcord is the world leading technology high density solution for telecom central office and data center. Varies connectors such as female UPC, female APC, male UPC, male APC are available. Strict manufacturing process ensure reliable quality of the pre-connectorized optical cable. All connectors are with good environmental and mechanical performance.
Green Telecom MPO patchcord offers superior optical performance, high stability and high reliability, meet various application requirements in Telecom central office and data center.

Features
● Compact design
● Low insertion loss and low PDL
● High reliability
● High channel counts
● Wide wavelength range
● Large operating and temperature range
● Customized packaging and configuration
● Full Telcordia GR1209/1221 qualifications

Specification

FTTh Cable Parameter
Connector A Type	Female UPC, Female APC, Male UPC, Male APC

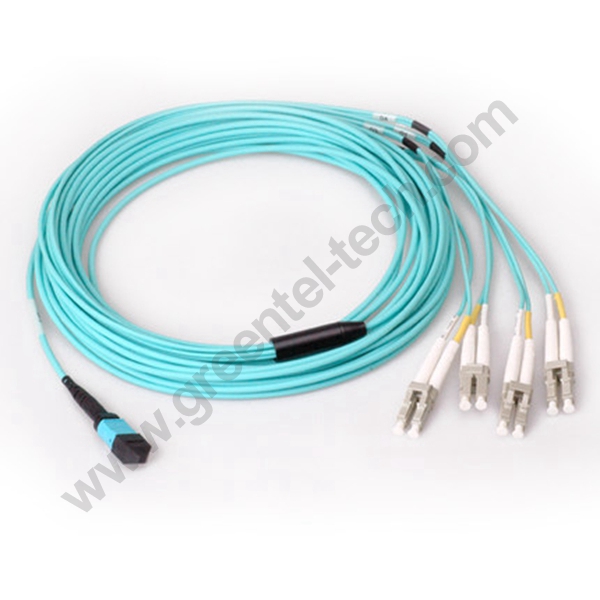

Connector B Type	MPO or LC/UPC, LC/APC
Fiber Type	SM or MM(50/125um or 65.5/125um)
Cable Type	4,6,8,12,24 Cores
Cable Jacket Color	Yellow(SM) or Green(MM)
Cable Length	Customized
Strengthen Member	Kevlar
Fiber Insertion Loss(dB)	< 0. 2
Connector Insertion Loss(dB)	< 0. 75
Connector Return Loss(dB)	UPC(> 55dB),APC(>60dB)
Repeatability(500 times)(dB)	<0. 2
Bending Radius(mm)	> 30
Tensile Strength(kg/100mm)	>120
Working Temperature	-20 (℃) to +60(℃)
Storage Temperature	-40 (℃) to +80(℃)
Relative Humidity	<90%RH

Customization Event
①Fiber Core Type
②Cable Length
③Connector A Type
④Connector B Type
⑤Polish Type

Ordering Information
    OFP--XX -XX- XX-- XX- XX-- XX-- XX
              1   -  2   -  3  -  4  - 5  -  6 -   7

1 Fiber Type	2 3 Connector	4 Cable Type	5 Cable Diameter	6 Cable Color	7 Cable Length
S0:G652D	Nil:No Adaptor	SP: Simplex	09:0.9mm	YL:Yellow	0:0m
S1:G657A	SU:SU/UPC	DP:Duplex	14:1.4mm	BU:Blue	........
S2:G657A2	SA:SA/UPC		16:1.6mm	OG:Orange	999:999m
S3:G657B2	FU:FC/UPC		20:2.0mm	BN:Brown
S4:G657B3	FA:FC/APC		30:3.0mm	GY:Gray
S5:G655C	LU:LC/UPC			WT:White
M1:50/125um	LA:LC/APC			RD:Red
M2:62.5/125um	EU:E2000/ UPC			BK:Black
M3: OM3	EA:E2000/ APC			VL:Violet
M4: OM4	MU:MU/UPC			PK:Pink
	DU: DIN/UPC			TUR:Turquoise
	DA:DIN/ APC
	ST:ST/ UPC
	MFA:MPO/FEMALE/APC
	MFU: MPO/FEMALE/UPC
	MMA: MPO/MALE/ APC
	MMU: MPO/MALE/ UPC
