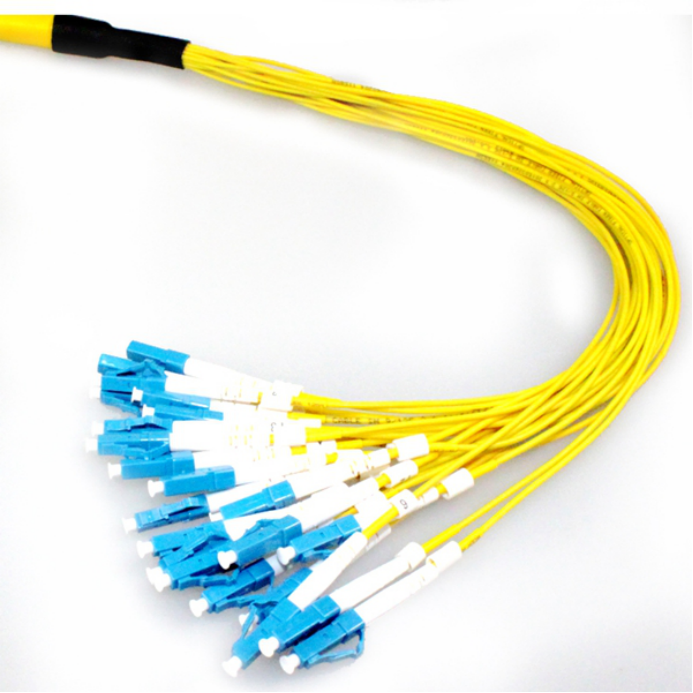

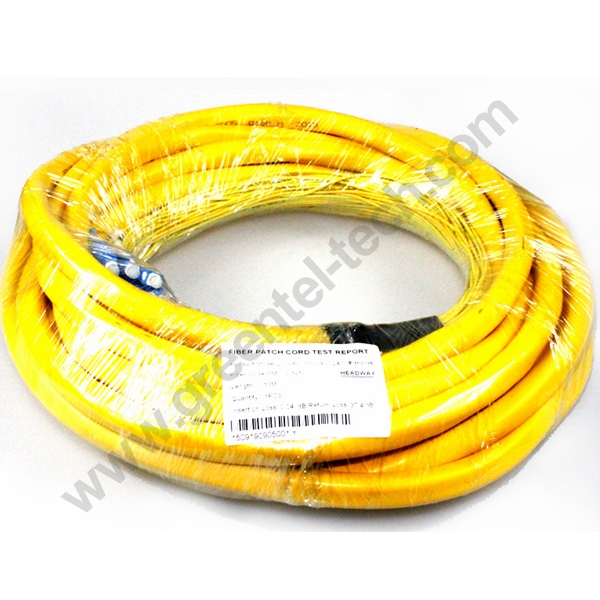

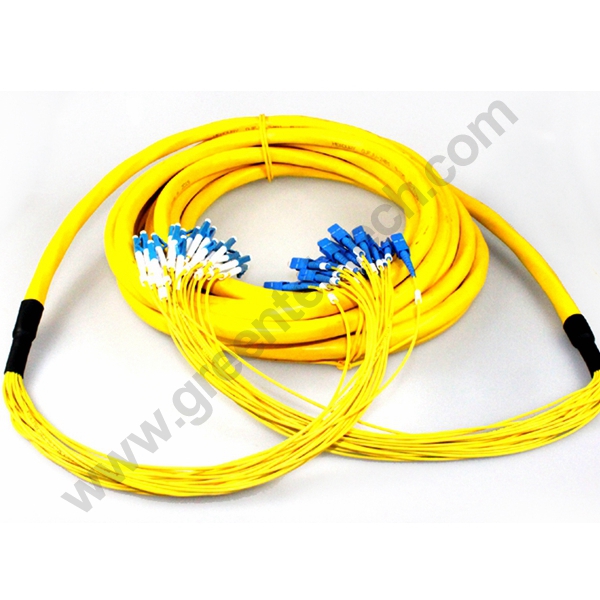

Fiber Breakout Cable

Fiber breakout cable are designed to wrap several single cores pigtails into one jacket to make the cabling more compact and more suitable for ODN projects.Varies of connectors such as FC, SC,ST, LC are available. Strict manufacturing process ensure reliable quality of the pre-connectorized optical cable. All connectors are with good environmental and mechanical performance. Green Telecom breakout cable offers superior optical performance, high stability and high reliability, meet
Contact Us
  • Product Information
  • Feedback
Among those famous fiber breakout cable manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized fiber access cable, fiber indoor cable, fiber distribution cable made in China. Our factory is waiting for your contact.

Description
Fiber breakout cable are designed to wrap several single cores pigtails into one jacket to make the cabling more compact and more suitable for ODN projects.Varies of connectors such as FC, SC,ST, LC are available. Strict manufacturing process ensure reliable quality of the pre-connectorized optical cable. All connectors are with good environmental and mechanical performance.
Green Telecom breakout cable offers superior optical performance, high stability and high reliability, meet various application requirements in FTTh construction, ODN construction,LAN,Metro network and CATV.
Features
● Compact design
● Low insertion loss and low PDL
● High reliability
● High channel counts
● Wide wavelength range
● Large operating and temperature range
● Customized packaging and configuration
● Full Telcordia GR1209/1221 qualifications
Specification
FTTh Cable Parameter
Connector Type
SC FC ST LC MU E2000 DIN MPO
Polish Type
UPC or APC
Fiber Type
SM or MM(50/125um or 65.5/125um)
Fiber Count Type
4,6,8,12,24
Cable Jacket
LSZH or PVC 2.0mm Diameter
Outer Cable Jacket
Yellow for SM fiber,Orange for MM fiber
Strengthen Member
Kevlar
Fiber Insertion Loss(dB)
< 0. 2
Connector Insertion Loss(dB)
< 0. 3
Connector Return Loss(dB)
UPC(> 55dB),APC(>60dB)
Repeatability(500 times)(dB)
<0. 2
Bending Radius(mm)
> 30
Tensile Strength(kg/100mm)
(>15
Working Temperature
-20(℃) to +60(℃)
Storage Temperature
-40 (℃) to +80(℃)
Relative Humidity
<90%RH
Customization Event
①Fiber Core Type
②Fiber Count
③Cable Length
④Cable Jacket Color
⑤Connector  Type
⑥Polish Type
Ordering Information
    OBOC--XX -XX- XX-- XX- XX-- XX-- XX
                 1   -  2   -  3  -  4  - 5  -  6 -   7
1 Fiber Type
2 3 Connector
4 Cable Count
5 Breakout Length
6 Cable Color
7 Cable Length
S0:G652D
Nil:No Adaptor
04: 4F
0:0m
YL:Yellow
0:0m
S1:G657A
SU:SU/UPC
06: 6F
........
BU:Blue
........
S2:G657A2
SA:SA/UPC
08: 8F
999:999m
OG:Orange
999:999m
S3:G657B2
FU:FC/UPC
12: 12F
BN:Brown
S4:G657B3
FA:FC/APC
24:24F
GY:Gray
S5:G655C
LU:LC/UPC
WT:White
M1:50/125um
LA:LC/APC
RD:Red
M2:62.5/125um
EU:E2000/ UPC
BK:Black
M3: OM3
EA:E2000/ APC
VL:Violet
M4: OM4
MU:MU/UPC
PK:Pink
DU: DIN/UPC
TUR:Turquoise
DA:DIN/ APC
ST:ST/ UPC
