Outdoor Caja de Distribucion Box FAT-16U

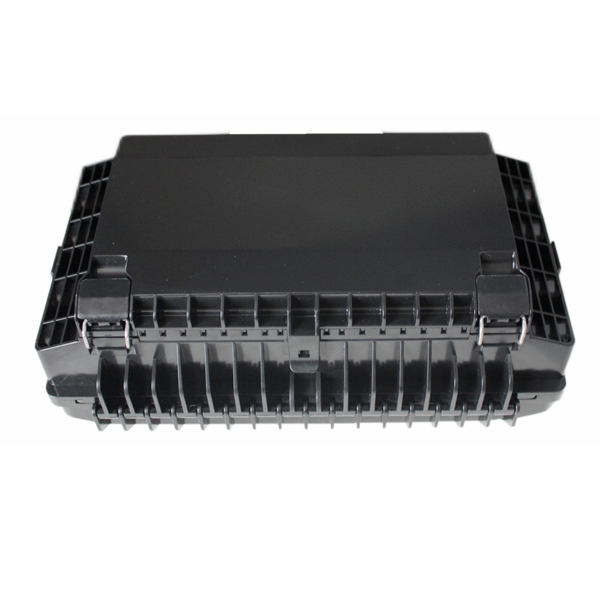

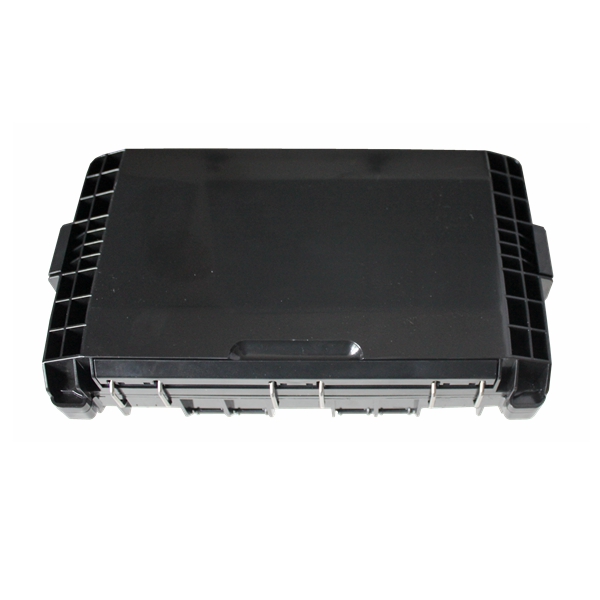

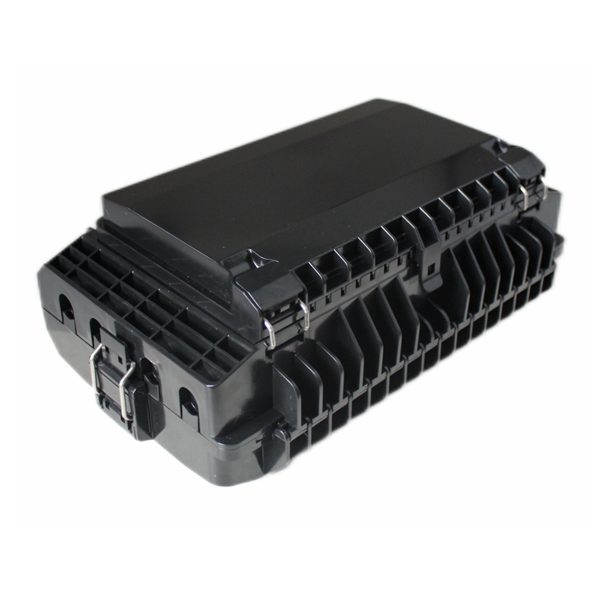

FAT-16U fiber access termination box is designed for aerial stand-mount FTTH drop location where drop cables are spliced to distribution cables.This product can keep internal components away from outdoor environmental damage.Its flexible configuration supports 4 cables in and 4 cables out.

PREV:No previous article
NEXT:Fiber Access Terminal Closure FATC-M0416A

Product Information
Feedback

Among those famous fiber access terminal FAT-16u manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized fiber access terminal FAT-16U made in China. Our factory is waiting for your contact.

Features

● The box casing is made of industrial plastic PC+ABS material.

● Outdoor application and good UV resistant.

● Protection grade: IP65.

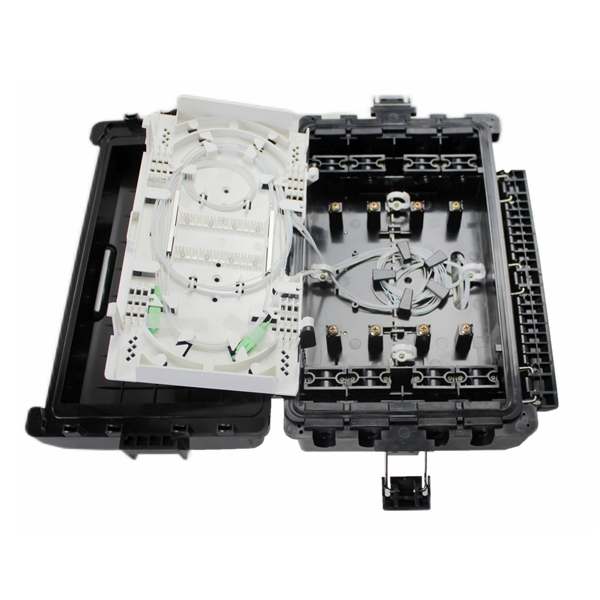

● 3 layers structure,easy for future expansion and maintenance

● Minimum fiber bending radius: 32mm.

● Designated position for the placement of 2pcs of 1:8 PLC splitter.

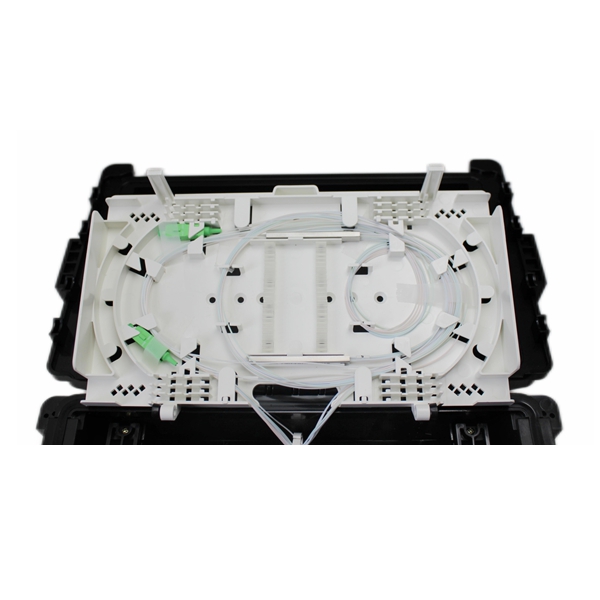

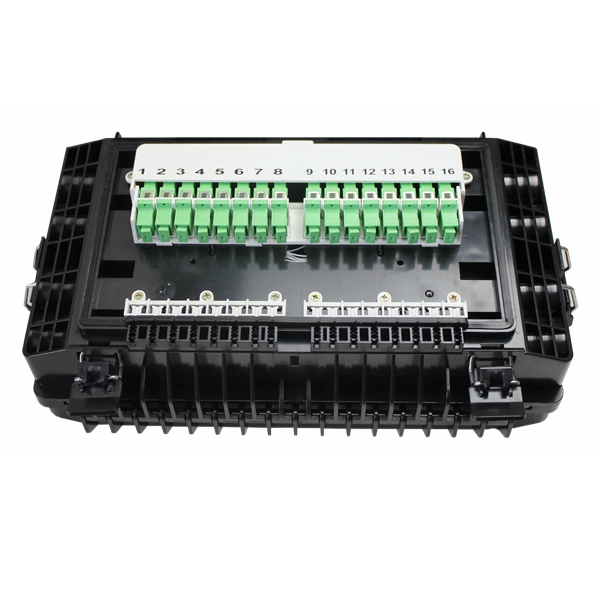

● 1x 24F splice trays,16x SC adapters for patching .

● 16x vertical drop cable ports for 3mm round drop cables.
● 4x cable in ports and 4x cable out ports(10-15mm fiber cables.)

Configuration

Fiber Access Terminal FAT-16U Parameter
Material	Size	Max Capacity		Nos of adapter	Weight	Color
PC+ABS	AxBxC(mm)	Splice	PLC splitter	16pcs SC/UPC	2.1 kgs	BLACK
PC+ABS	340203124	1x 24F tray	2 pcs of 1x8(SC)	or 16pcs SC/APC	2.1 kgs	BLACK

Standard Accessories

Splice trays x 1pcs, aerial hanging hook, fiber protective sleeves, cable protection tube, cable ties,manual.
