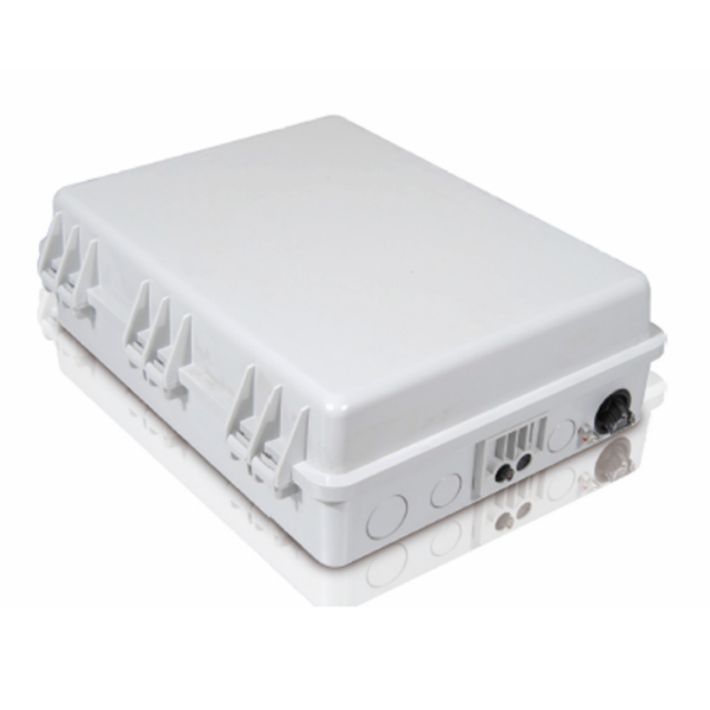

Fiber Access Terminal NAP Box FAT-48A
  • Fiber Access Terminal NAP Box FAT-48A
  • Fiber Access Terminal NAP Box FAT-48A

Fiber Access Terminal NAP Box FAT-48A

FAT-48A fiber access termination box is able to hold up to 48 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Contact Us
  • Product Information
  • Feedback
Among those famous fiber access terminal fat-48a manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized fiber access terminal fat-48a made in China. Our factory is waiting for your contact.


Description
FAT-48A fiber access termination box is able to hold up to 48 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Features
● Water-proof design with IP-65 Protection level.
● Integrated with splice cassette and cable management rods.
● Manage fibers in a reasonable fiber radius condition.
● Easy to maintain and extend the capacity.
● Fiber bend radius control more than 40mm.
● Suitable for the fusion splice or mechanical splice.
● 2 pcs of 1*16 Modular Splitter can be installed as an option.
● Efficient cable management.
● 2 ports cable entrance for feeder cable and 1 ports for 48 drop cable.
Configuration
Fiber Access Terminal FAT-48A Parameter
Material
Size
Max Capacity
Installation Size
Weight
Color
PC+ABS
AxBxC(mm)
SC
LC
DxE(mm)
3.2kg
White
420x320x132
48 Ports
96 Ports
256x400
Standard Accessories
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, hose clamp, rubber seal for cable entrance.
Optional Accessories
Pole ring, Extra lock and key
