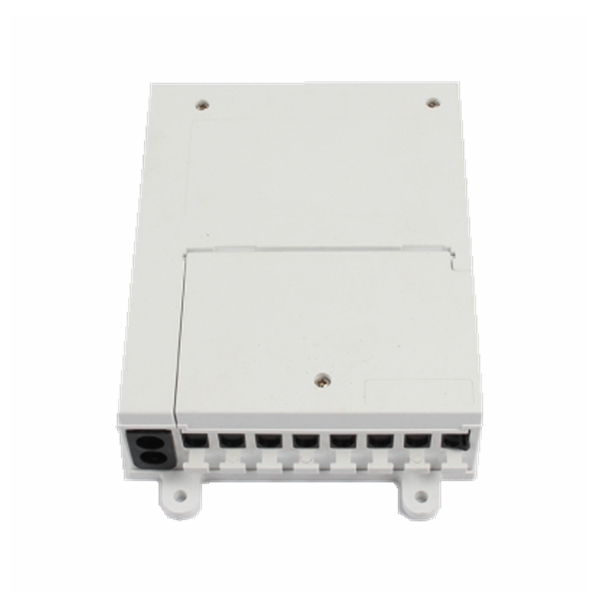

Fiber Access Terminal FAT-8J

FAT-8J fiber access termination box is able to hold up to 8 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

PREV:Fiber Access Terminal FAT-8K
NEXT:Fiber Distribution Box Fiber Access Terminal FAT-8G

Product Information
Feedback

Among those famous fiber access terminal FAT-8J manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized fiber access terminal FAT-8J made in China. Our factory is waiting for your contact.

Features

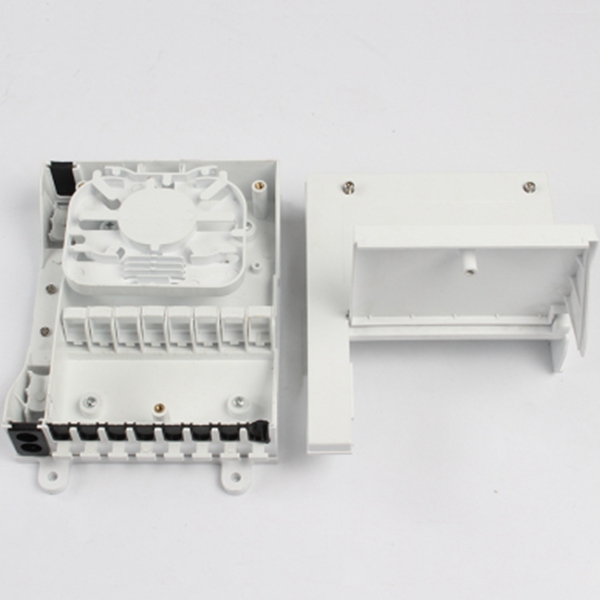

● Integrated with 1 x splice trays and 8 x shutter type adapters.

● Fiber bend radius control more than 35mm.

● 4 x inlets for uncut cable with maximum diameter 12mm .

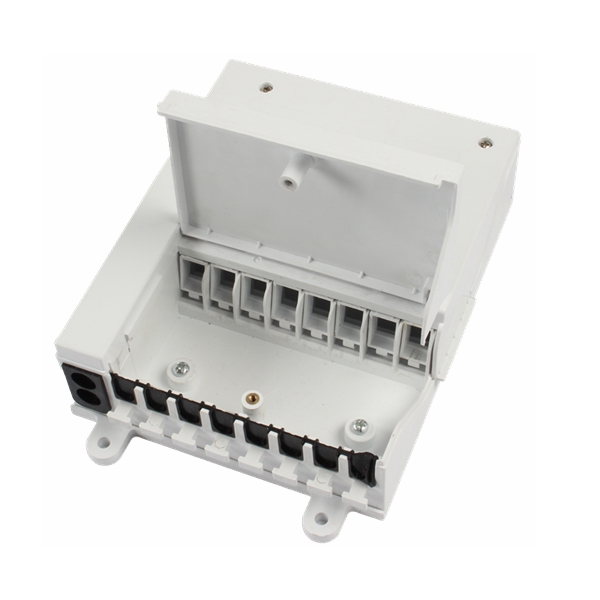

● Flip-up window structure to provide a better protection and neat cabling, unauthorized tampering is prevented.

● Made by industrial PC+ABS plastic material, life span at least 20 years.

● Protective Level: IP-54 for indoor uses.

● Max 8F splice capacity and 1 x splitters(1:8) .

● 8 x outlets for 2x3mm flat type or 3-5mm round type drop cable.

Configuration

Fiber Access Terminal FAT-8J Parameter
Material	Size	Max Capacity			Weight	Color
PC+ABS	AxBxC(mm)	SC	Cable ports	LGX SPLITTER	0.3kg	White
PC+ABS	19213347	8 Ports	4 x Inlets(6-12mm) 8 x Outlets(3-5mm)	1x8(SC)	0.3kg	White


Standard Accessories

Cable ties, fiber protective sleeves, wall mounted tapped screws, rubber grommets for cable inlets&outlets(pre-installed),manual instruction.
