Fiber Access Terminal 2 cores FAT-2B

Among those famous fiber access terminal FAT-2B manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized fiber access terminal FAT-2B made in China. Our factory is waiting for your contact.

Description

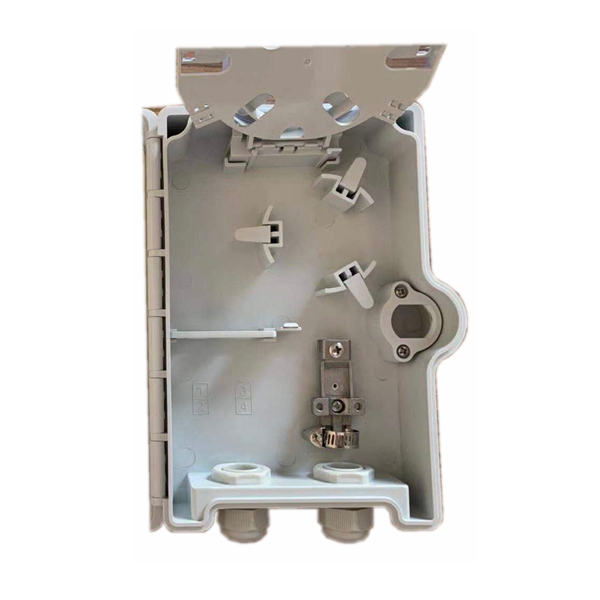

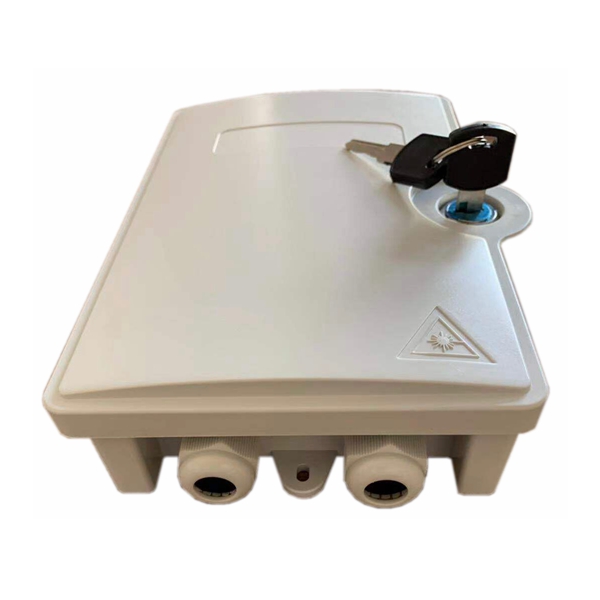

FAT-2B fiber access termination box is able to hold up to 2 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Features
● Water-proof design with IP-65 Protection level.
● Integrated with splice cassette and cable management rods.
● Manage fibers in a reasonable fiber radius condition.
● Easy to maintain and extend the capacity.
● Fiber bend radius control more than 40mm.
● Suitable for the fusion splice or mechanical splice.
● 1*2 Splitter can be installed as an option.
● Efficient cable management.
● 2 ports cable entrance.

Configuration

Fiber Access Terminal FAT-2B Parameter

Material

Size

Max Capacity

Weight

Color

PC+ABS

AxBxC(mm)

SC

LC

PLC

0.8kg

Light Grey

208x153x52

2 Ports

4 Ports

1x2(SC)

Standard Accessories
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves.
