NAP Box Cajas Terminales Opticas 16 cores FAT-16B

FAT-16B fiber access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

PREV:Fiber Access Terminal FAT-16C
NEXT:NAP Box 16 cores Fiber Access Terminal FAT-16A

Product Information
Feedback

Among those famous fiber access terminal fat-16b manufacturers and suppliers in China, Green Telecom Tech Co.,Ltd can offer you customized fiber access terminal fat-16b made in China. Our factory is waiting for your contact.

Description
FAT-16B fiber access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Features
● Water-proof design with IP-65 Protection level.
● Integrated with splice cassette and cable management rods.
● Manage fibers in a reasonable fiber radius condition.
● Easy to maintain and extend the capacity.
● Fiber bend radius control more than 40mm.
● Suitable for the fusion splice or mechanical splice.

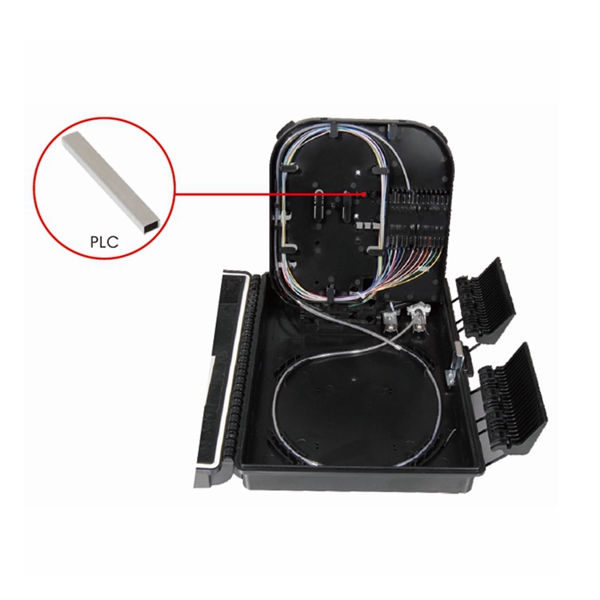

● 1*16 Splitter can be installed as an option.
● Efficient cable management.
● 16 ports cable entrance for drop cable.

Configuration

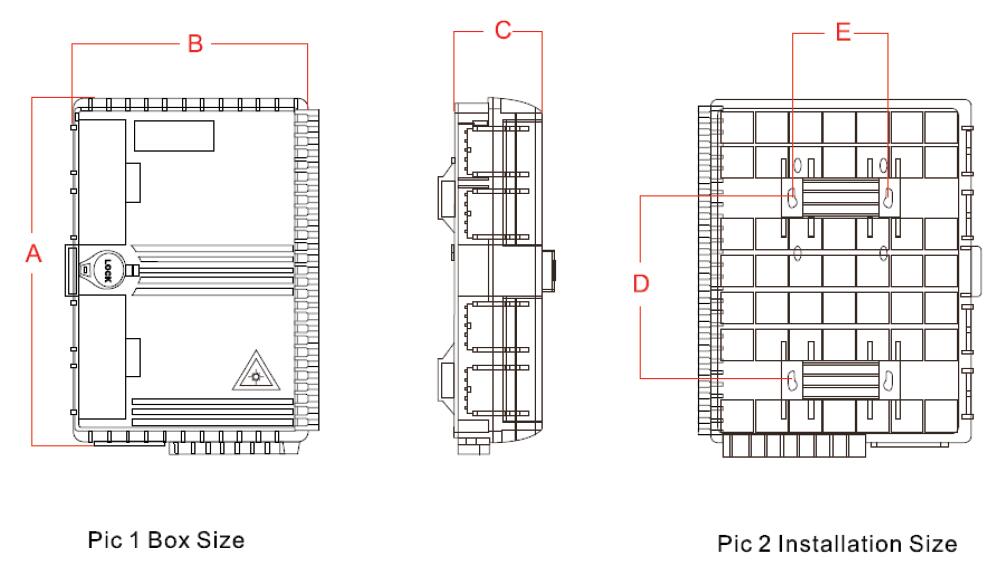

Fiber Access Terminal FAT-16B Parameter
Material	Size	Max Capacity		Installation Size	Weight	Color
PC+ABS	AxBxC(mm)	SC	PLC	DxE(mm)	1.4kg	White/Black
PC+ABS	292x218x83	16 Ports	1x16(SC)	154x82	1.4kg	White/Black

Standard Accessories
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, hose clamp, rubber seal for cable entrance.

Optional Accessories

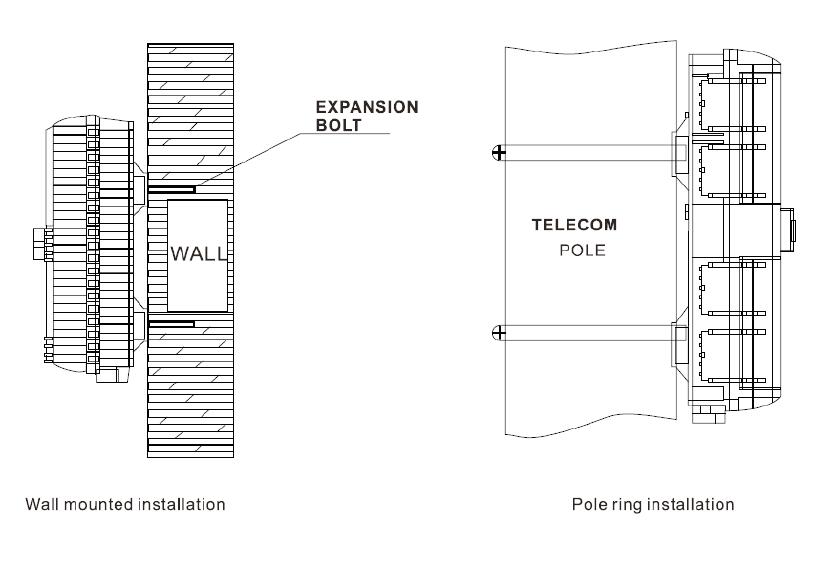

Pole ring, Extra lock and key
